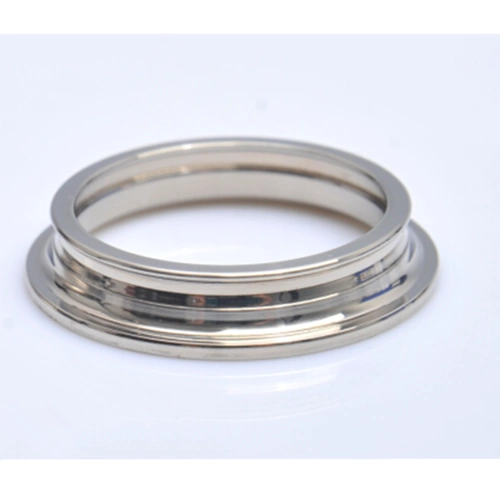

PRECISION SPINNING RINGS FOR MODERN TEXTILE PRODUCTION

Key Features & Benefits:

• Advanced Material: High-carbon steel with chromium plating (HRC 62-65 hardness)

• Surface Treatment: Diamond-polished inner跑道 for 40% reduced friction

• Speed Performance: Stable operation at 25,000rpm (30% higher than conventional rings)

• Ingot Consistency: ≤0.8% CV improvement in yarn evenness

• Compatibility: Available for all major ring frame models (Rieter/Toyota/Savio)

Technical Specifications:

ParameterSpecificationDiameter Range38mm-54mm (customizable)Flange TypesU/V/W profilesSurface FinishRa ≤0.2μm mirror polishOperating Temp-20°C to 150°C

Quality Assurance:• ISO 9001:2015 certified production
• 100% laser measurement inspection
• 18-month performance warranty
