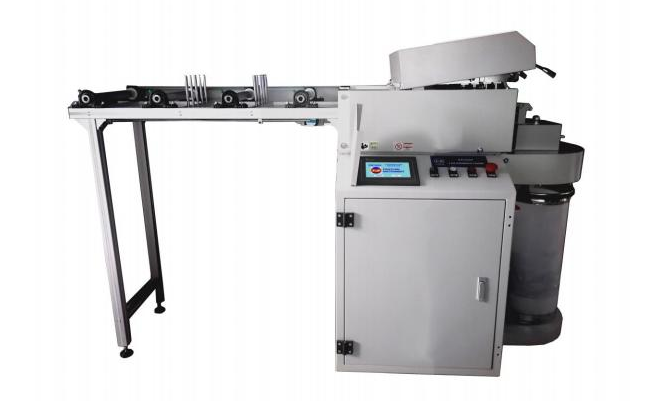

Digital sample drawing machine

  • Product details

  1. ‌Application Scope‌: The main function is to stretch raw strips into mature strips.

  2. ‌Technical Features‌:

    • Automatically feed raw strips; easy to learn and operate;

    • Touchscreen operation interface; free switching between Chinese and English;

    • Aluminum profile frame with four roller wheels, which can be moved freely;

    • High degree of integration of electromechanical systems, stable and reliable.


  3. ‌Technical Parameters‌:

    ModelControl ModeFiber LengthNumber of Cores
    DW7020HPLC & Touchscreen22~50mmUp to 8 cores

  4. Drawdown Multiple4 - 12 times
    Roller DimensionsΦ35/35/45mm
    Production Capacity0.25 - 0.6kg/h
    Cylinder SpecificationsΦ250×550mm
    Roller Pressure MethodSpring - applied pressure
    Drafting Speed*4~24m/min, adjustable
    Feeding & Output FormFeeding raw sliver, output processed sliver
    Drafting Method*Three - up, three - down pressure bar with guide rail, upward roller curve drafting
    VoltageAC220V50HZ, single - phase

    ‌

  5. Standard Configuration‌:

Serial NumberDescriptionQuantity
1Host Machine1 unit
2Core Tube5 units
