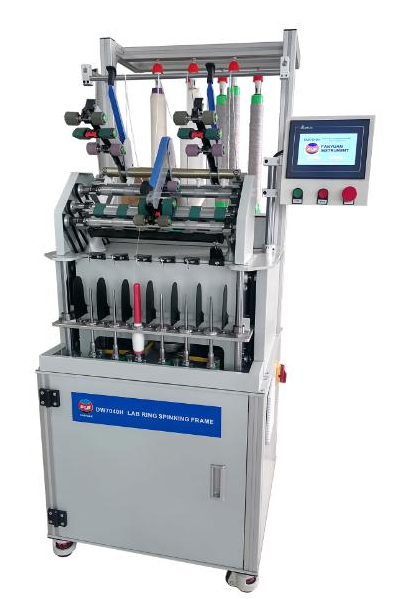

Digital sample spinning machine

  • Product details

  1. ‌Usage Scope‌
    Main function: To produce fine yarns with the required fineness from coarse yarns. Wind the fine yarns into packages for storage, transportation, and further processing.

  2. ‌Technical Features‌

  • Suitable for S/Z twisting samples;

  • Adopting a ‌Delta PLC + touchscreen‌, driver, and servo motor, easy to learn and operate;

  • The spindle is driven by a servo motor, with a spindle speed accuracy of ±1%;

  • The software can set different spinning profiles for different yarns;

  • Touchscreen operation interface, with free switching between Chinese and English;

  • Aluminum frame with four freely movable rollers;

  • High degree of electromechanical integration, stable and reliable.

  • ‌Technical Parameters


Control MethodPLC & Touchscreen
Fiber Length22~50mm
Production Capacity0.25 - 1kg/h
Yarn Density6~99tex (6~100Ne)
Twist DirectionS or Z
Drafting Range10 - 50
Drafting ControlAutomatic
Maximum Spindle Speed*12000RPM
Spindle Distance70mm
Spindle Length205mm
Output0.25 - 1kg/h
Bobbin Diameter42mm
Number of Spindles6
Pressure Application MethodSpring Rocker Frame
Twist Setting Range200~2000 (T/m)
Roller DimensionsΦ25/25/25mm
Roller Center Distance*Front - Rear Interval: 143mm; Front - Middle Interval: 43mm
VoltageAC220V 50Hz, Single - Phase
Standard configuration:



Serial No.DescriptionQuantity
1.Main unit1 unit
2.Spacer plate12 pieces
3.Middle iron roller1 piece
4.Upper leather ring4 pieces
5.Lower leather ring4 pieces
6.Front and rear leather rollers2 pieces
7.Single trumpet mouth6 pieces
8.Flat belt1 piece
9.Steel ring steel wire ring100 pieces
10.Fine sand tube50 pieces
